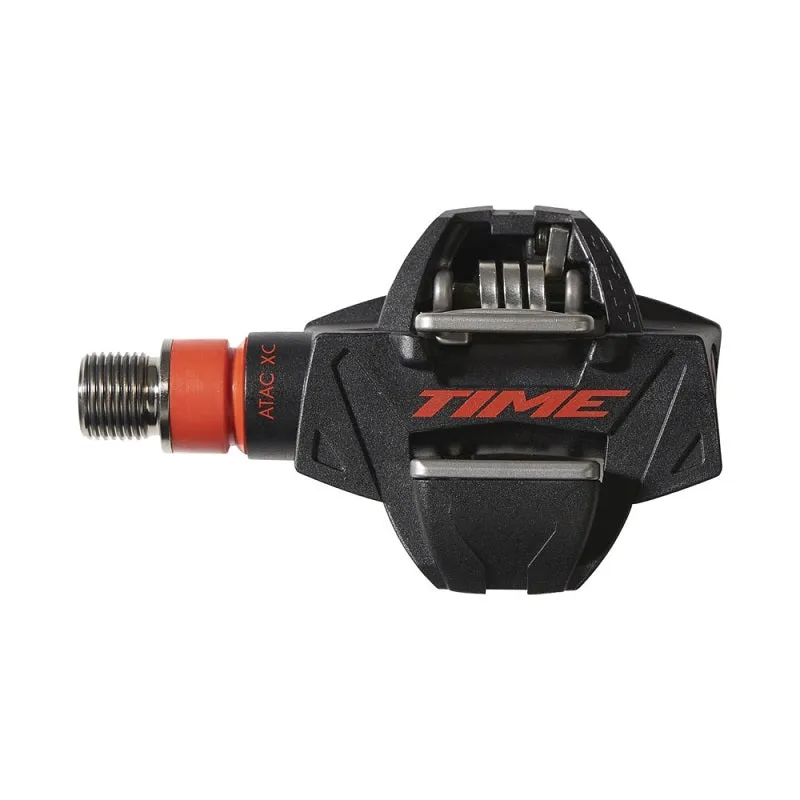

The XC 12 is our lightest off-road pedal, and it features a titanium axle and carbon body. With tension adjustment to fine-tune how the pedal functions, the XC 12 offers easy and consistent engagement and an open design that clears debris each time you step in.

FEATURES:

Easy pedal engagement.
Titanium axle and carbon body for light weight.
Tension adjustment.
Cleats included with all pedal purchases.

SPECIFICATIONS:

COLOR (PEDAL) Black/Red
POWER MEASUREMENT Not Compatible
BODY COMPONENT Carbon-filled
CLEATS ATAC cleats
PEDAL STACK HEIGHT 19mm
ANGULAR FREEDOM n/a
CONTACT SURFACE AREA n/a
DISTANCE PEDAL SPINDLE / CRANK ARM 54mm
LATERAL FREEDOM 5mm
RELEASE ANGLE 10° with ATAC Easy cleats, 13 or 17° with ATAC cleats
TENSION 3 different positions of the spring
THREADING 9/16 - 20 inch
ACCESSORIES ATAC cleats
INTENDED USE XC, CX, Gravel
BEARINGS Steel
WEIGHT (G) 124
WEIGHT BASED ON per pedal
